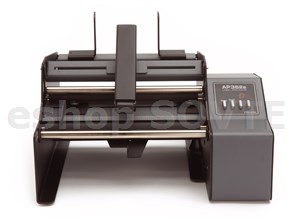

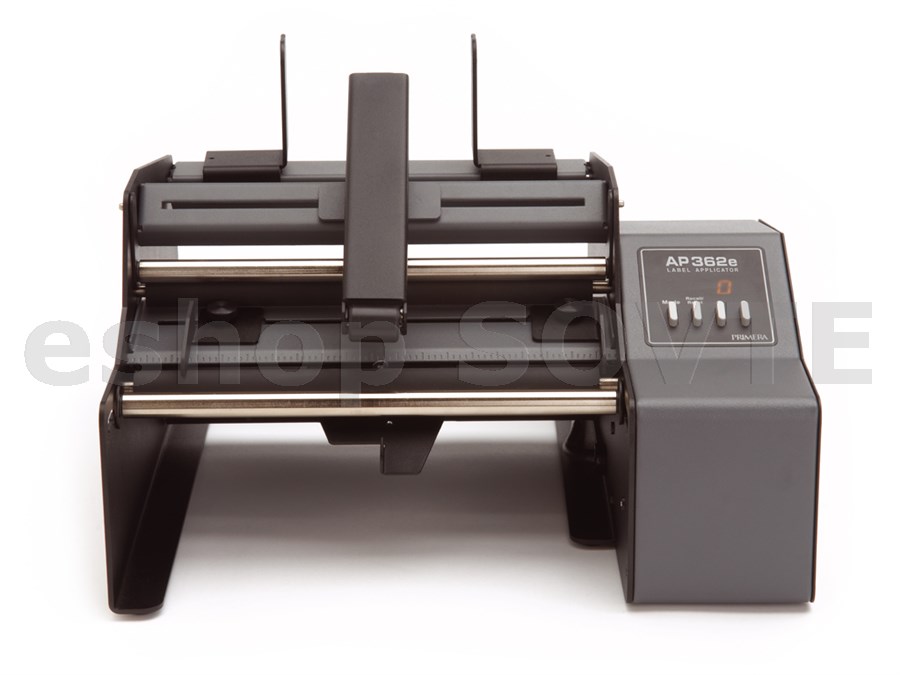

AP362e Label Applicator 100-240 VAC, Euro Plug, CE

AP362e Label Applicator 100-240 VAC, Euro Plug, CE

Your price without VAT
1 795.00 €
Your price with VAT
2 171.95 €
Availability
External storage
Code
74294


Primera’s AP-Series Label Applicators are the perfect semi-auto-matic labeling solution for cylindrical containers as well as many tapered containers, including bottles, cans, jars and tubes.

With an AP-Series Label Applicator you’ll apply labels faster and more accurately – helping to speed up your production and sell more of your products!

Apply Labels Fast and AccuratelyWith an AP-Series Label Applicator you’ll be able to apply labels at speeds of up to 1200 per hour. Labels are perfectly applied without wrinkles, giving your finished products a highly professional look.AP-Series Label Applicators are an ideal accessory to Primera’s LX- or CX-Series label printers. The applicators can also apply roll-fed, pressure-sensitive labels produced by most other flexographic, offset and digital presses

Features
• Quick set-up and easy operation• Accurately applies labels to the front (AP360e) or front and back (AP362e) with variable spacing
• Fast – labels are applied at 135 mm (5.3”) per second – up to 1200 containers per hour
• Compact size – fits on most desks and countertops
• Professionally designed – one of the only semi-automatic label applicators available with UL, CSA and FCC safety and emissions certifications
• Industrial strength – built with heavy-duty sheet metal and steel for long life

Specifications AP360e/AP362e Label Applicator

Container Width:
    25.4mm to 238mm (1" to 9.4")
Container Diameter:
    15mm to 170mm (0.6" to 6.7")
Container Shape:
    Cylindrical and many tapered
Supply roll diameter:
    Up to 203mm (8" )
Media liner width:
    25.4mm to 213mm (1" to 8.375")
Supply roll core:
    50.8mm to 76.2mm (2" to 3" I.D.)
Electrical rating:
    12VDC, 5.0A
Power requirements:
    100-240VAC, 50/60 Hz, 60 watts
Agency certifications:
    UL, UL-C, CE, FCC Class A
Weight:
    7.26 kg (16 lbs.)
Dimensions:
    340mmW x 226mmH x 328mmD (13.4"W x 8.9"H x 12.9"D)
Gap between Labels:
    Recommended: 3.175mm - 6.3500mm (1/8" - 1/4")
Label Type:
    Die cut with waste removed. Clear labels can be used
Liner Thickness:
    2 mil - 10mil (smoothness will affect feeding - a liner that is too slippery or too thin will slip through the drive rollers)
Label + Adhesive Thickness:
    5 mil - 15 mil*
Wind Direction:
    Wound out - See Copy-Position Chart below (Position 3 or 4 for most containers)
Manufacturer:
    Primera Technology, Inc.
